Cabinet knob placement for doors and drawers (and 4 things NOT to do)

If you buy something through our links, this site might earn an affiliate commission.
Share on pinterest
Share on facebook
Share on email
Share on twitter
Share on reddit

While not a surprise, when you drill holes in cabinets you can’t undo the hole. Which makes your cabinet knob placement decisions very important. Trying to figure out where to put your knobs? Or, wondering how to drill holes in cabinets? We’ll cover both topics in this article.

First, spending time and effort on where to place your cabinet hardware is important.

But how you drill the holes is just as important – and why I use a cabinet hardware jig like this Tourace Jig  to avoid mis-aligned or crooked hardware.

So, to help your placement this guide will cover:

  • Where to consider placing knobs
  • How to test placement without drilling a hole
  • Cabinet knob placement tools that will help put the knob hole where you want it
  • Tips and tricks I’ve gained over decades of cabinet installation

Lastly, we’ll wrap up with three things I just don’t recommend anyone do when installing your own cabinet hardware.

Cabinet Knob Placement Tools

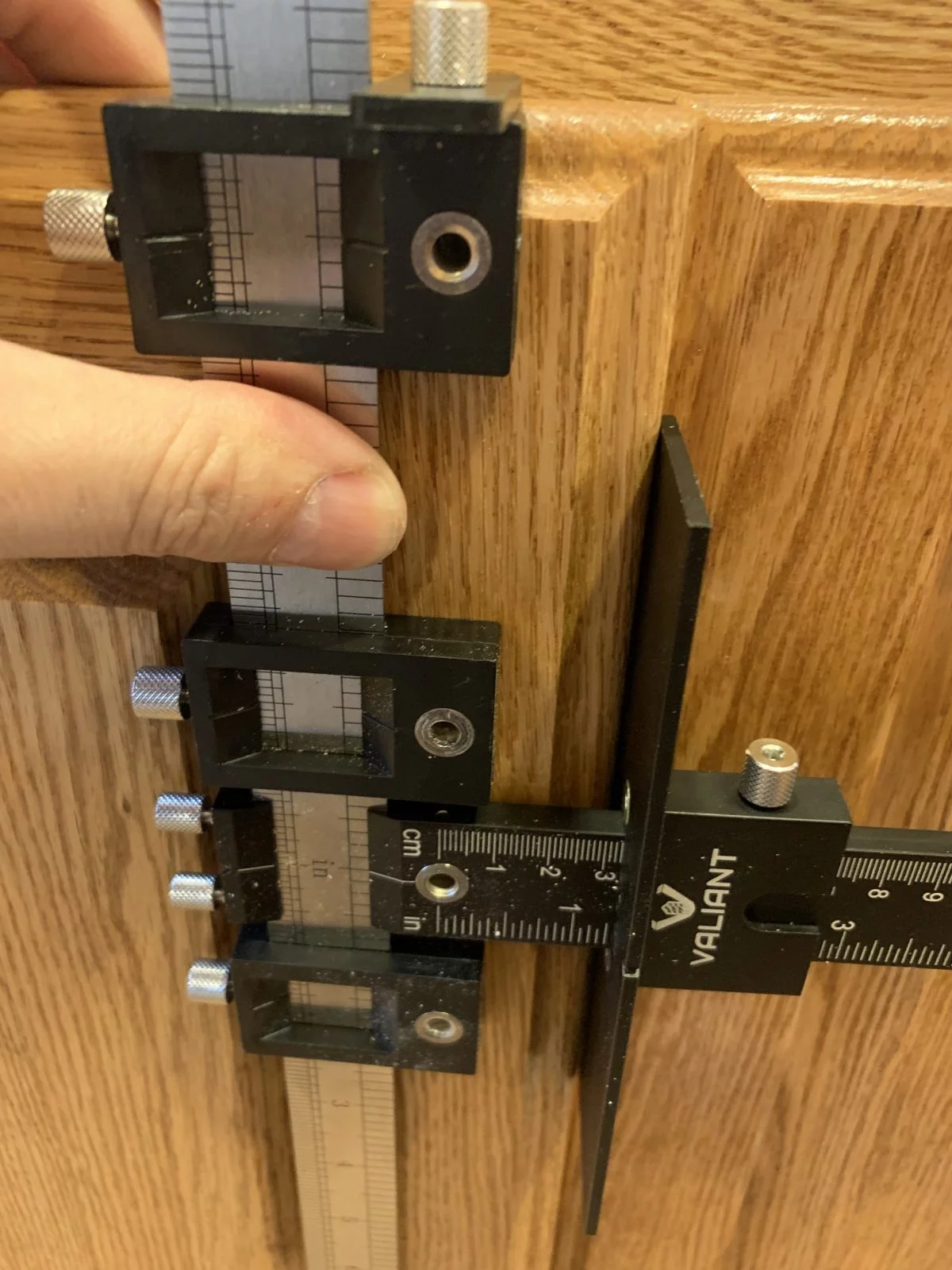

TOURACE cabinet hardware jig for placing cabinet holes
742 Reviews
Tourace Cabinet Hardware Jig for Handles and Knobs…
  • The quick-release Drill Guide Block makes set up simple
  • High precision wide range of adjustment Easy to operate

Last update on 2020-10-27 at 04:16 / Affiliate links / Images from Amazon Product Advertising API

Choosing where on the drawer or door the cabinet will go is important.

But without the right tools to install the knobs you’ll run into issues with:

  • Knobs on adjacent doors drilled at different heights
  • Drawer knobs not vertically aligned on stacks of drawers
  • Drill bits “wandering” when they start drilling

If you have longer handles or are tackling larger jobs check out our guide to cabinet hardware jigs for more options.

Cabinet Knob Placement Steps

These are the basic steps to placing your cabinet knobs correctly:

  1. Complete installation of the cabinets
  2. Align all doors and drawers
  3. Use a putty like Loctite Fun-tak to temporarily hold a knob in place
  4. Sample different locations on doors and drawers and find your visual preference
  5. Use a cabinet hardware jig set to desired location
  6. Drill holes with a pilot point bit and backer board to prevent “blowing out” the inside of door
  7. Make sure you have the right drawer screws. I always have 1-5/8″ drawer screws on hand – the supplied screws are usually too short.
  8. Install knobs with a screwdriver or cordless drill with the clutch set to a low trigger

For Doors: Cabinet Knob Placement Options

how to install cabinet knobs

Let’s start with door knob placement. Generally, doors and drawers can be considered separately when laying out the knob location. There are a few considerations and placement options that we’ll review for cabinet knob placement:

  • Location on the door rail or stile
  • Upper cabinet placement for ease of use (height)
  • Hinge location – especially for end cabinet doors
But first let’s understand a little about door construction.

Explaining Door "Stiles and Rails"

Door Stiles and Rails

I’ll refer to stiles and rails a few times so it’s best to start with a picture. As shown above, rails and stiles make up the outside frame of most cabinet doors and are integral to the construction of the door. As you can see the rails are horizontal at the top, bottom and sometimes middle of the door. Stiles are vertical and can be remembered as “stiles stand”.

Classic Knob Placement

The classic knob placement centers the knob on the stile and lines the knob stile height with the inside edge of the rail.  Or in other words, the knob is placed about 2-1/2″ from the bottom of upper cabinet doors or 2-1/2″ from the top of a bottom cabinet door.

Rail Aligned Cabinet Knob Placement

As you can see this arrangement allows for a visual balance as the knob is centered on the horizontal edge of the rail. And because of this I’ve installed 99% of knobs in this fashion.

Tip: Why do I prefer to install the knobs with the doors mounted on the cabinets? As you can see from the diagram the upper and lower rail is needed to place the hole. So attempting cabinet knob placement and hole drilling with the doors off introduces opportunity for error such as mistaking an upper door for a lower cabinet door.

Non-Traditional Knob Placement

There are two other options for placing knobs. First the knob can be centered both ways on the stile and rail. While second the knob can be placed in the center of the door stile.

Non-traditional cabinet knob placement

There is no right or wrong answer if you getting creative. However, usability must be kept in mind and one example is center knob placement for pantries, as in the diagram below.

Bottom Cabinet Pull-out Doors

One last variation to consider are base cabinets that have a pull-out door front. And for these I recommend looking at a knob design that incorporates a handle for ease of use. Just install this handle horizontally on the upper rail, centered left-to-right and in the center of the rail (remember stiles stand!).

Frameless or Slab Doors

So what if I don’t have traditional rail and stile construction? Well, you can repeat the visual placement of the traditional door.

Frameless door cabinet knob placement

As you can see you can see the traditional placement will work – or you can vary placement and choose a symmetric approach where the “up and in” measurements are the same. In either case, I’d recommend using a cheap putty like this Loctite Fun-Tak to temporarily hold a few knobs in place. And make sure you put a soft pad below the putty to catch the knob n case it slips off.

Outside or Inside Edge of Door

End cabinet knob placement

For usability of the door, and this may mean changing the “swing”, you’ll want to consider end cabinets carefully. By this I mean how will the door operate? For example, with an end cabinet you won’t want to walk “around” the door swing to access it’s contents.

It’s common, then, to have the hinges on the side closest to a wall or open end of the cabinet.

Double checking this is important with cabinet knob placement as you’ll be deciding the door swing permanently once the knob hole is drilled.

Drawer Knob Placement

Drawers have a couple of considerations that doors don’t:

  • Centered left to right and top to bottom, one knob or two knobs
  • Handles or Knobs
  • Bottom drawer placement in a “drawer stack”

Cabinet knob placement for solid drawer front, under 24" wide

This is the simplest and most common configuration. Because most drawer fronts are under 24″ wide simply installing the knob centered both vertically and horizontally is common.

Framed Drawer Front, Under 24"

Framed Drawer Cabinet Knob Placement

Depending on the construction of the door there are two options here:

    • Centering on the drawer vertically
    • Installed in the upper rail

If you choose to install in the upper rail keep in mind how the countertop overhang may impede use of the knob. Due to this it could be best to wait until the counters are installed.

Cabinet knob placement for a solid drawer front over 24" wide

The only change here is considering two knobs may be necessary to support even weight distribution as the drawer is extended. To help with even drawer action, when a drawer is over 24″ two knobs are generally used and spaced out in 1/3rds.

To do this simply measure the drawer front, divide by 3 and from the left and right put knobs at that distance. For example, a 27″ drawer front would be 27/3 = 9″.  Then just place the knobs at 9″ in from the left and right.

Lastly, visual preference comes into play here. Due to this it is acceptable to spread the knobs out a little further to the edge of the drawers. Again, try the putty method and see what you like before committing with drilled holes.

Framed Drawer Front, Over 24"

You can take exactly the same approach as with a solid front. However, consider using the top rail where you have room under the countertop and/or it is visually appealing to you or the homeowner.

Framed Drawer over 24" cabinet knob placement

How to Avoid Damaging Your Kitchen

Tacklife Laser Tape Measure

It goes without saying that your kitchen is expensive. But when you look at the cost of replacing a door or drawer front because of a bad knob placement it isn’t cheap. And if you are remodeling older cabinets finding a replacement door or drawer may not even be feasible.

So how do you avoid putting a hole in the wrong place?

    1. Measure three times. Just because you use a jig or other method doesn’t mean it is right.
    2. Always drill knob holes with the doors and drawers installed. By doing this you will avoid an upper cabinet door having a knob drilled for a lower cabinet door. Or other disasters.
    3. Use a backing board when drilling holes to avoid “blowing out” the wood on the back side of the door or drawer. Or worse, drilling into your finger (hey, after drilling thousands of knobs I’ve done that…).
    4.  Have the knobs in hand. Due to variation in knob appearances don’t even think about drilling holes until you have at least one knob available.

Cabinet Knob Placement Jigs and Supplies

After deciding knob location you’ll need a few tools. And not just any tool, there are custom tools to help make the installation easier.

#1 - Door and Drawer Cabinet Knob Placement Jig

TPT-1934 cabinet hardware jig for placing cabinet knob locations
787 Reviews
The Original Cabinet Hardware Jig – Adjustable…
  • 𝗧𝗛𝗘 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟 𝗖𝗔𝗕𝗜𝗡𝗘𝗧 𝗛𝗔𝗥𝗗𝗪𝗔𝗥𝗘 𝗝𝗜𝗚 – Eliminate homemade templates or hand measuring while installing your cabinet pulls and knobs. Designed for professionals and DIY’ers to make installations faster, easier and more precise. Works on any cabinet door stile and rails including shaker doors & recessed drawer fronts. Designed for drawers fronts up to 16” tall and hardware up to 12” in length. Includes 5mm drill bit & hard carrying case. For longer hardware see TP-1935.

Last update on 2020-10-27 at 04:16 / Affiliate links / Images from Amazon Product Advertising API

A cabinet hardware jig will allow you to quickly and accurately drill holes in dozens of drawers and doors. And in just minutes.

These jigs are a lifesaver for time and quality as you’ll have a tool to set repeatable knob position. And they are also available in prices from about $30 for an economy jig up to almost $300 for professional jigs.

Don’t think you need one? Go count how many doors and drawers you have and then think about manually measuring each knob location with a combination square and sharp pencil. And then think about the opportunity to read a tape wrong and drill a hole in the wrong spot.

#2 - Bradpoint Drill Bits

Brad point drill bits for drilling hardware screw holes
716 Reviews
DEWALT Drill Bit Set, Brad Point, 6-Piece…
  • Precise cutting edges to reduce splintering
  • Brad point tip reduces walking
  • Engineered flutes for clean effective chip removal

Last update on 2020-10-27 at 05:03 / Affiliate links / Images from Amazon Product Advertising API

Brad-point drill bits make sure the bit goes into the exact spot you intend. And not all drill bits can do that. Because you’ll need these for both the cabinet installation and the cabinet knobs and handles I like to have a set on hand.

#3 - Cordless Drill

Cordless drills for drilling and screwing hardware
383 Reviews
Bosch Power Tools Drill Set – CLPK232A-181 –…
  • POWER: Bosch DDS181A drill and driver provides innovative 18 Volt canned motor that’s more compact with the same torque as other 18 Volt power tools
  • LIGHTWEIGHT: Bosch DDS181A drill/driver features lightweight and compact tough design with a 7. 0 Inch head length and only 3. 5 pounds , meter
  • Torque and speed: This drill kit contains the Bosch 25618 cordless drill with 2 batteries (2. 0 Ah slim pack batteries); The Bosch 25618 1/4 inch hex Impact driver’s powerful wrench delivers 1, 500 pounds Of professional grade torque and 3, 200 BPM and 2, 800 no load RPM
  • Compact: Bosch 25618 impact driver is the most compact in its Class, with a 5.7 Inch head length and weighs only 3. 8 pounds

Last update on 2020-10-27 at 05:03 / Affiliate links / Images from Amazon Product Advertising API

A high quality pair of drills will make the job go much smoother.  While you aren’t looking for a 4″ screw, hole-saw drilling heavy duty drill you will want solid batteries and lithium ion batteries.

But the #1 feature you’ll want? You guessed it – an adjustable clutch.

Four Things NOT to Do When Installing Cabinet Hardware

As promised, here are three common errors you can make when installing your cabinet hardware:

  1. Mistake #1: Rush your hardware installation. If you’ve just installed your cabinets, don’t rush into the hardware the same day as the installation. While you have a week or two until the counters are installed test out your handles and hardware, and see what and where you like.
  2. Mistake #2: Freehand your holes. Haven’t drilled a lot of holes in wood? Well, you’d be surprised that wood grain will lift your drill bit sideways and make for a mis-placed hole. Use an inexpensive cabinet hardware jig instead.
  3. Mistake #3: Drill all the holes, then test out a knob. Like sawing, measure twice, drill once and install a test knob. Then, make sure you like it and keep going.
  4. Mistake #4: Splintering your cabinets. Look, wood is made of fibers. And when a drill bit forces through them and finds a soft spot on the inside of the door it makes a splinter. How to avoid this? Using a backing block on the inside of the door and drill slowly.

Summary

Hopefully this article was useful in understanding your options for cabinet knob placement and how you can best install them. For more helpful DIY articles be sure to subscribe below.
