Drawer slides are hard to work with. Not only are they in a hard to reach spot, but installing them perfectly is difficult. Which makes a soft close drawer adapter an alternative for anyone looking to upgrade their drawers from slamming “self close” slides.
Fortunately, for the millions of kitchens and cabinets with epoxy “bottom mount” drawer slides there are solutions.
In this guide learn what adapters are available and the steps to install them.
Supplies Needed
Soft close drawer adapters:
› Rok Hardware Drawer Adapter at Amazon ($15.52)
Cabinet door soft close damper:
› Blum Cabinet Door Damper (10 pack) at Amazon ($37.99)
Drawer installation jig:
› Kreg Drawer Installation Jig at Amazon ($32.00)
How to Install a Soft Close Drawer Adapter
Step 1: Verify Slide Compatibility

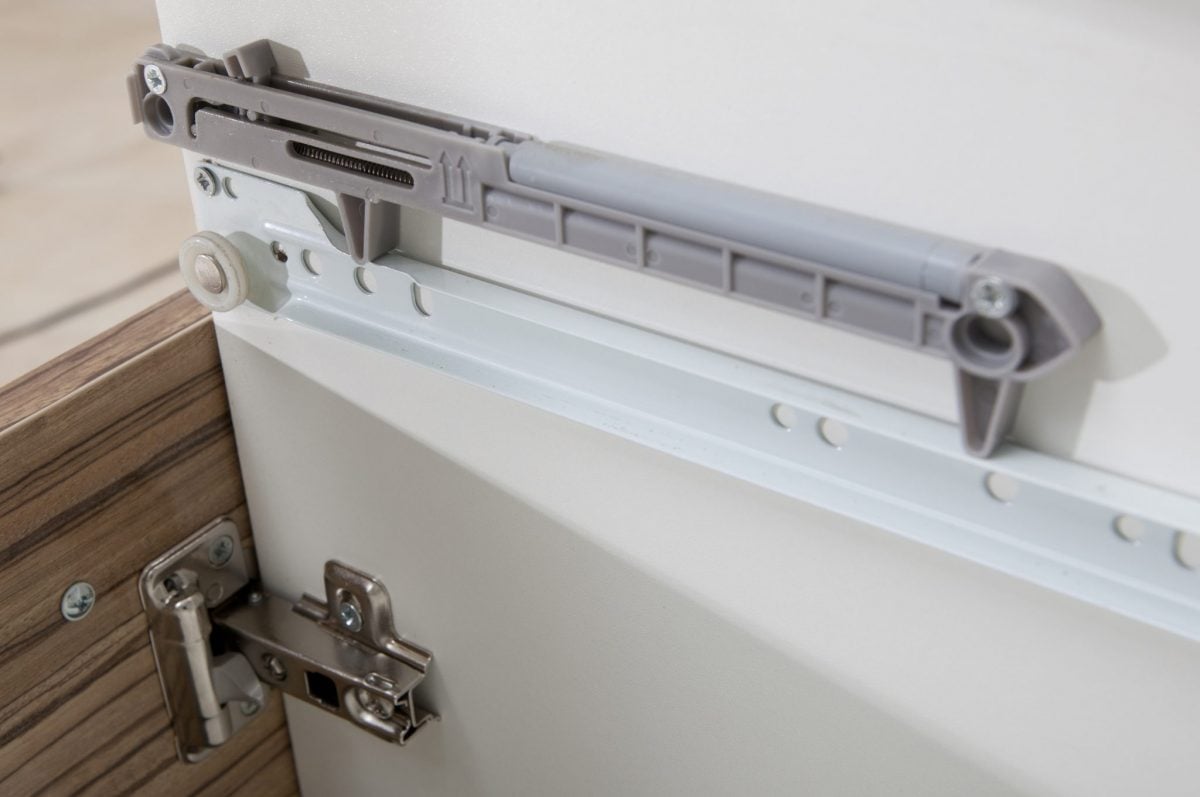

Most soft close drawer adapters will only work with bottom mount (white, in picture above) or side mount drawer slides. In this step, take a look at your drawer slides and see if they match this style.
If your slides are top mounted or undermount there are other options and check here for our guide to the best soft close drawer slides.
Step 2: Order Soft Close Drawer Adapters
Once you’ve determined compatibility, ordering the adapter is easy: simply count the number of drawers you want to add soft closing to and order.
Step 3: Prepare a Spot to Attach the Adapter
This step is optional if you have “frameless” cabinets. Because frameless cabinets have drawer slides attached directly to the cabinet side you’ll have a place to mount the adapter. Skip to the next step if this is your style of kitchen.
However, if you have face frame cabinets you’ll need a place to mount the adapter.

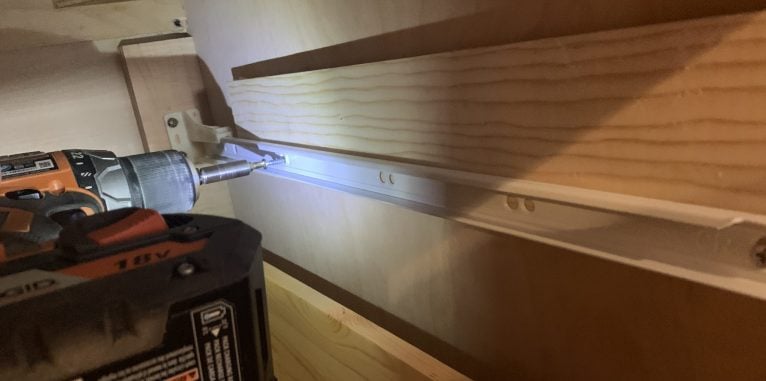

While your first instinct might be to cut a custom width board and attach to the side of the cabinet I have a trick. Rather than fight the table saw simply make a 1/2″ piece of plywood cut to 3″ x 18″ (for a standard kitchen). Then using a few extra 1/2″ screws attach this plywood directly to the epoxy guide slide using the existing screw holes.
For two tricks in one step, if you aren’t a woodworker with spare lumber don’t despair. Just order pre-finished drawer side stock and cut it to length.
Step 4: Attach the Adapter to the Cabinet (or Slide)
If you aren’t familiar with epoxy slides there is one thing you’ll need to know. And that is the right hand slide is typically the “guide slide”.
What’s a guide slide? Well, it’s the slide that has a lip that keeps the epoxy slide wheel in a tight line. And this is what makes epoxy slides easy to install as the other (left) side allows the slide wheel room to roam.
Why am I explaining this? Because you need to attach the soft close drawer adapter to the guide slide side. Or risk a headache later with the mechanism failing (it’s happened to me).
Step 5: Attach the Catch to the Drawer
I said 3 minutes per drawer and this is already step 5. So, let’s finish the installation with a few more screws.
First, make sure the adapters “catch” is all the way forward. Then install the drawer and rest the catch on the soft close adapter and find the back “trigger”. Now lightly hold the catch in place, keeping it level, and draw a very thin pencil line on the top edge.
Lastly, pull the drawer out a bit and screw the catch onto the drawer about 1/16″ of an inch above your reference line. Doing this will ensure your catch doesn’t rub on the adapter (you’ll hear it if it does). Start with two screws in the vertical slots to allow for adjustment. Finally when you’re happy everything is working install the third lock screw as show in the picture above.
That’s it! Just close the drawer and watch it self close.
Tip: Go ahead and give the wheels of the epoxy slides a shot of silicone spray to quieten them and make the drawers run smoother.
Frequently Asked Questions for a Soft Close Drawer Adapter
What is a soft close drawer adapter?
What is a soft close drawer adapter? An adapter for a soft close feature works with the original slide and uses the same mechanism as a traditional soft close drawer slide. When the drawer is almost closed the adapter grabs the drawer and slowly pulls it shut. And this eliminates slamming found with traditional drawers.
What are the drawbacks to a soft close adapter?
After installing these on a few of my cabinets the biggest drawback is it takes a little extra force to initially open the drawer. And, while I’ve built and used drawers with drawer slides like Blum, the soft close mechanism works well in comparison.
But one key: the adapter *has* to be installed on the guide slide of an epoxy slide drawer. Otherwise the catch can fail.
Can I add soft close to existing drawers?
You can add soft close to existing drawers using an adapter specially made for this purpose. By using a standard 1/2″ clearance an adapter will work with the existing slide to catch and close a drawer. While these adapters can work with ball bearing slides, they work best with the epoxy drawer slides used on millions of cabinets and furniture.
What is the best soft close drawer slide?
After twenty years of woodworking my recommendation for the best soft close drawer slide is the Blum BLUMOTION. Due to their heavy duty pistons and mechanism for soft close they open easy and shut extremely smooth. However they only work for new drawers due to special side clearance requirements. But, there are a number of side mounts that will work for existing 1/2″ side clearances. Learn more in our guide to the best soft close drawer slides.
How does soft close drawers work?
Soft close drawers work through use of compression mechanisms and springs that will catch a drawer in its last 1-2″ of travel. By closing the drawer with a reasonable force the slide will catch the moving drawer and slowly pull it shut – thus preventing the slam common with slides.
Is a soft close drawer adapter the same as a soft close drawer damper?
Yes – both are designed to catch cabinet drawers and slow the close during the final 1-2″ of drawer slide travel.
Summary
It really is possible to install a soft close drawer adapter in just a few minutes. But if you don’t have bottom mount slides, or want to upgrade to other drawer slides then you’ll want to invest in replacement drawer slides.
